| Attribute | Value |
|---|---|
| Wire Length | 16.7m |
| Gross weight | 6000kg |
| Max processing size | 2000*3000*1500mm |
| Wire Speed | 0-40m/s |
| Model NO. | Discovery 4-2000/2500/3000 |
| Water Consumption | 4m3/H |
| Control | CNC |
| Wire Diameter | 0.6-1.8mm |
| Automation | Automatic |
| Cutting Precision | High |
| Spindle | 15KW |
| Control System | PLC SYSTEM |
| Parameter | Max processing size | Wheel diameter | Trolley size | Table bearing weight | Wire speed | Main motor | Outline dimension | Gross weight | Water consumption |
|---|---|---|---|---|---|---|---|---|---|
| Discovery4-2000 | 2000*3000*1500mm | 1600mm | 1400*2500mm | 20T | 0-40m/s | 11kw | 6800*6300*3950mm | 6000kg | 4m³/h |
| Discovery4-2500 | 2500*3000*1500mm | 1600mm | 1400*2500mm | 20T | 0-40m/s | 11kw | 7800*6300*3950mm | 6250kg | 4m³/h |
| Discovery4-3000 | 3000*3000*1500mm | 1600mm | 1400*2500mm | 20T | 0-40m/s | 11kw | 8800*6300*3950mm | 6500kg | 4m³/h |

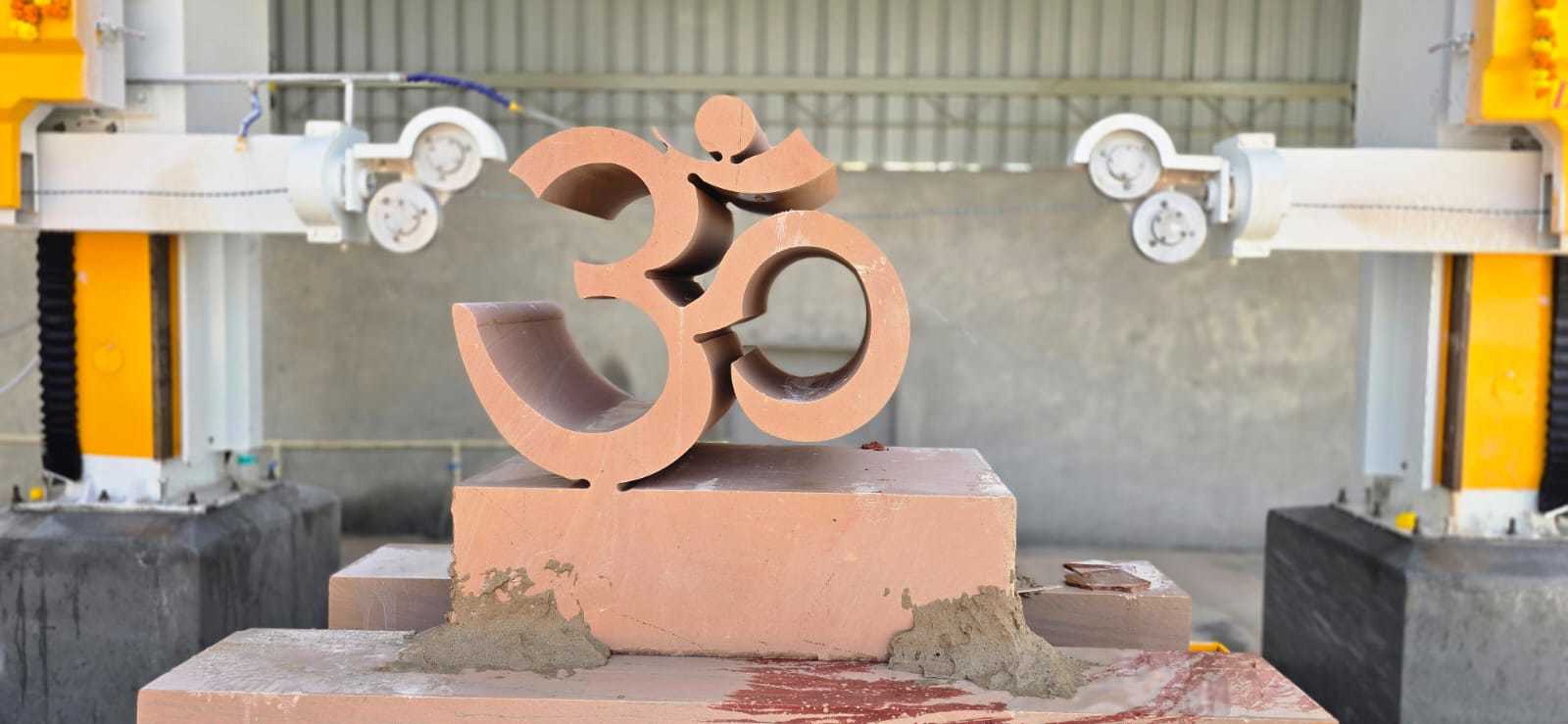

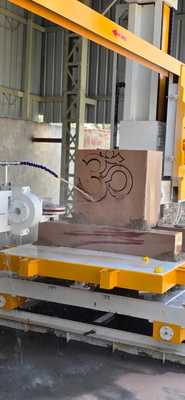

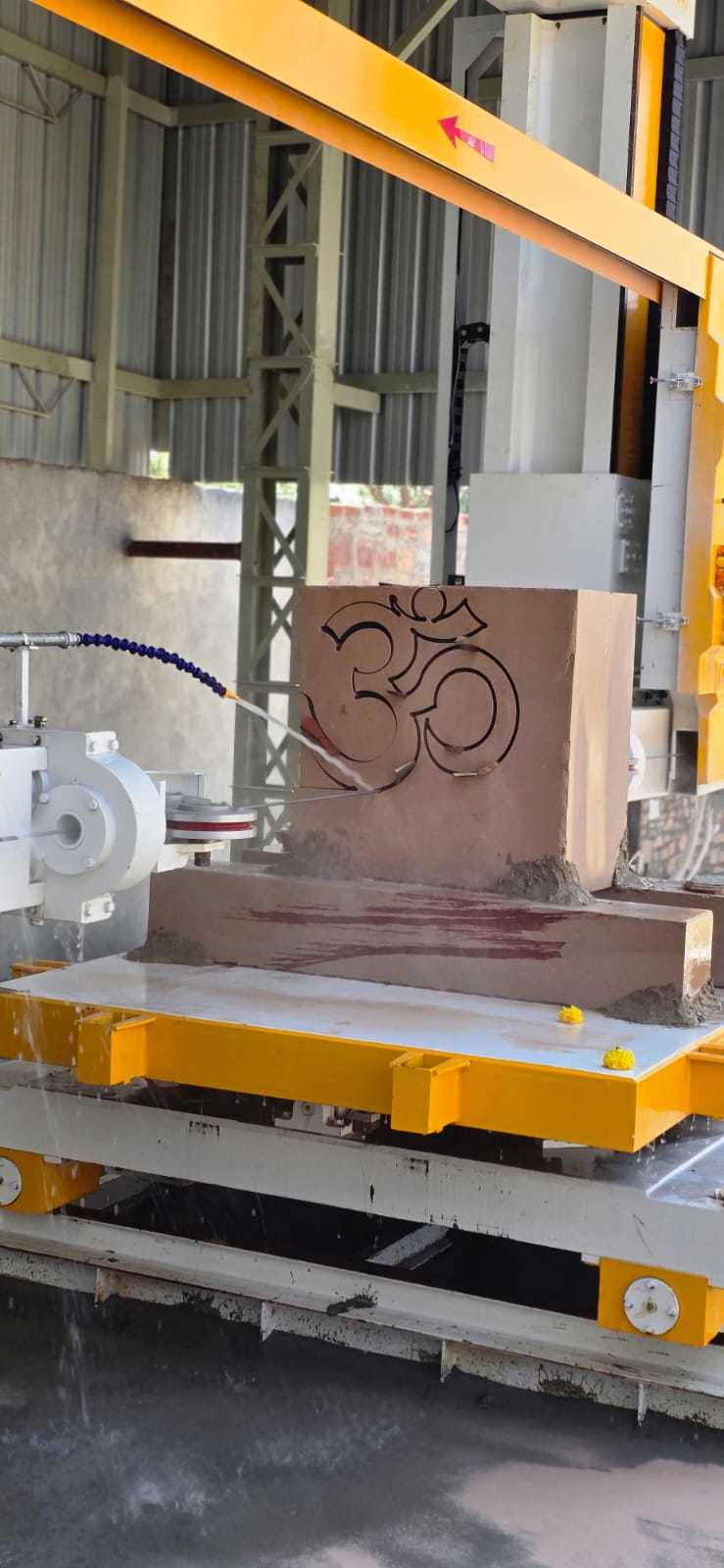

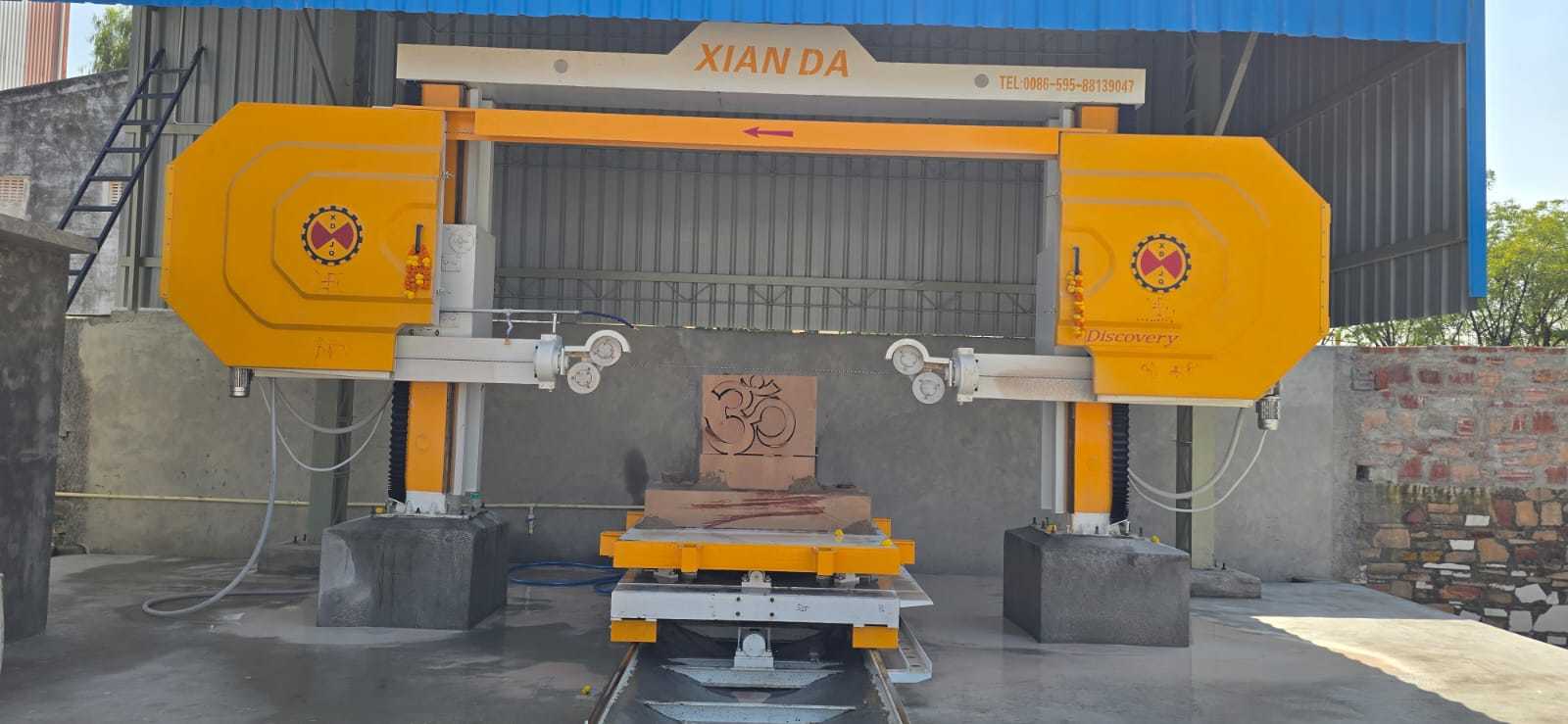

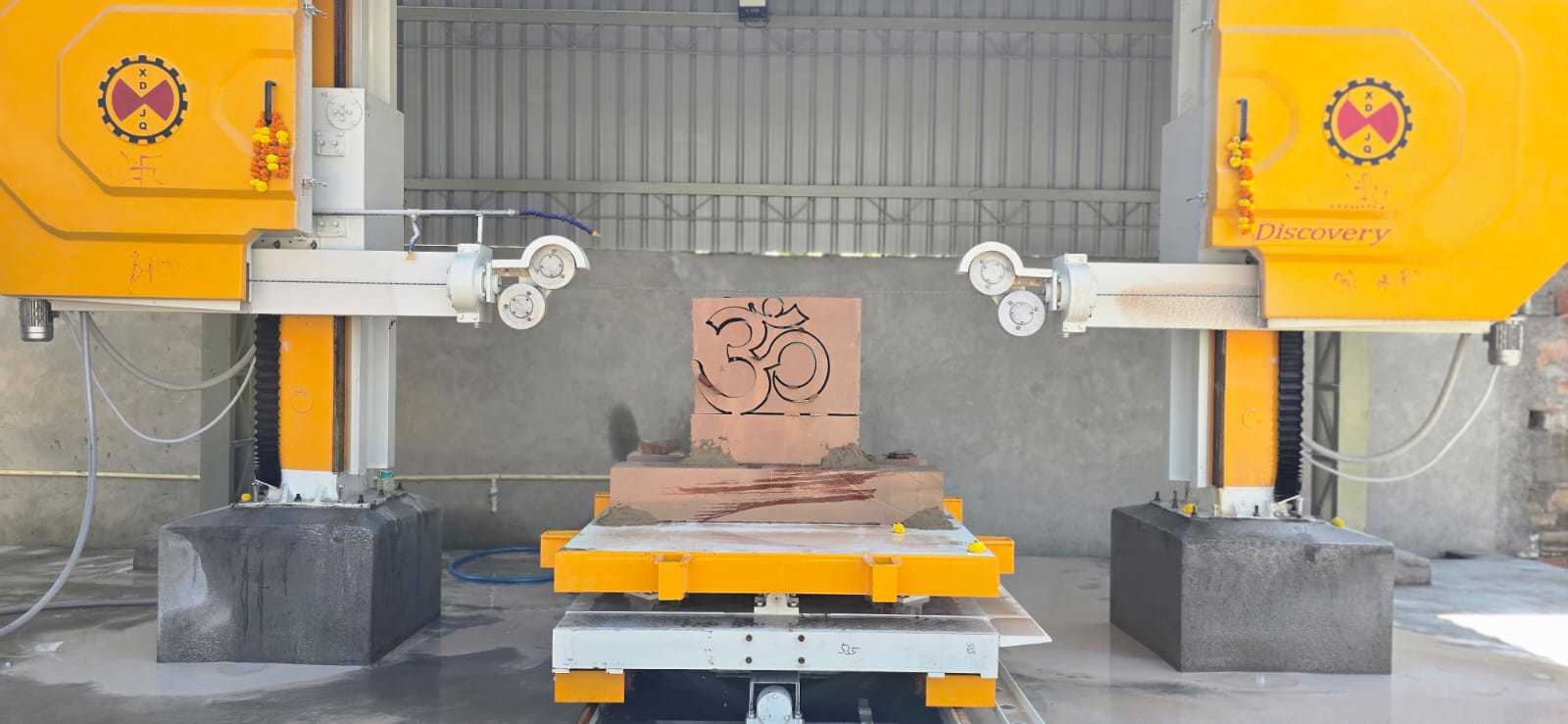

The Diamond Wire Saw Machine is a cutting machine specially designed for cutting granite, marble, and sandstone. It is equipped with a 16.7-meter wire, which is capable of cutting materials up to 2000*3000*1500mm in size. The machine is equipped with a four-spindle linkage to ensure an accurate cutting process. It is powered by a motor that offers a wire speed of 0-40m/s, and consumes 4m3/H of water. The Diamond Wire Saw Machine is reliable and has a one-year warranty.
XIANDA MACHINERY's diamond wire saw machine is a reliable, durable and cost-saving tool used for cutting and processing various stones such as marble, granite, quartz, sandstone, limestone and more.
Certified by API, CCC, SONCAP, GOST, ISO, CE, SGS; IAF, the diamond wire saw machine can be purchased with a minimum order quantity of 1 SET and is available for both sea and land transportation with suitable plastic package.
We offer comprehensive technical support and service for Diamond Wire Saw Machine. Our technicians are available to provide support and maintenance for your machine.
Our technical support services include:
A: The Brand Name is XIANDA MACHINERY
A: The Model Number is Discovery 4-2000/2500/3000
A: The place of origin is Jinjiang, Fujian, China
