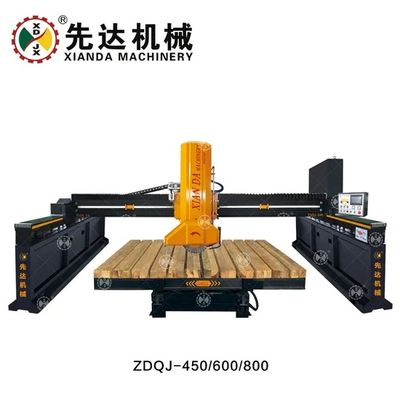

ZDQJ-450/600/700 Infrared Automatic Stone Bridge Saw Cutting Machine for Granite/Marble
Basic Information
Model NO.: ZDQJ-450/600/800
Application: Construction, Stone Industry
Source Voltage: 380V
Automation: Automatic
Cutting Ability: High Speed
Control: PLC
Certification: CCC, SONCAP, GOST, ISO, CE
Blade Diameter: Φ300-Φ450
Max Processing Size: 3200*2000*120mm
Dimension of Worktable: 3200*2000mm
Workable Tilting Degree: 0-85°
Worktable Rotation Degree(Optional): 0-90° / 0-360°
Main Motor: 15kw
Gross Motor: 21kw
Water Consumption: 4m3/H
Outline Dimension: 6000*4800*2900mm
Gross Weight: 5250kg
Transport Package: Load in a 20 Feet Container
Specification: 6000*4800*2900mm
Trademark: Xianda
Origin: Jinjiang, Fujian, China
HS Code: 84641090
Production Capacity: 1000 Sets/Year
Product Description

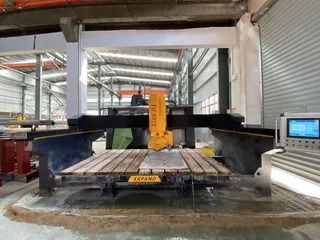

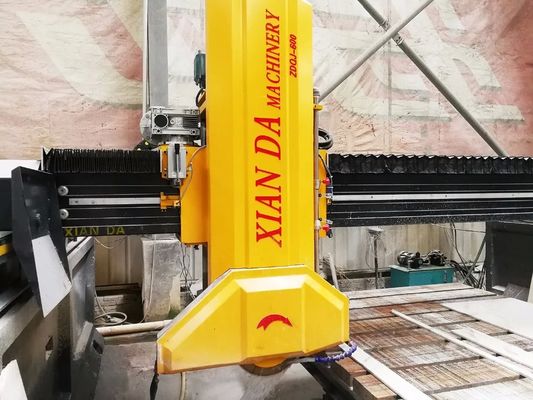

The ZDQJ-450 infrared automatic stone bridge cutting machine comes in three types, featuring PLC system and Human-machine interface. It incorporates ultra-high precision rotary encoder positioning and infrared device, with Chinese & English dual operation language. The machine uses inverter to control left-right feeding, adjusting speed according to stone material, and features hydraulic lifting system equipped through 4 guide posts with unique side beam protection device. Main spare parts utilize imported high-quality materials.

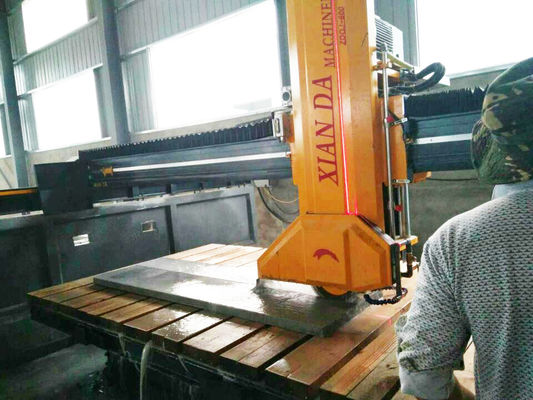

This machine is characterized by high cutting efficiency, precision cutting, excellent stability, and easy operation, making it particularly suitable for high-value granite and large-size marble processing.
Technical Parameters
| Parameter |
Unit |
ZDQJ-450 |
ZDQJ-600 |
ZDQJ-700 |
| Blade diameter |
mm |
300-450 |
350-600 |
350-700 |
| Max processing size |
mm |
3200*2000*120 |
3200*2000*180 |
3200*2000*230 |
| Dimension of worktable |
mm |
3200*2000 |
3200*2000 |
3200*2000 |
| Worktable tilting degree |
° |
0-85° |
0-85° |
0-85° |
| Worktable rotation degree |
° |
0-90°/0-360° |
0-90°/0-360° |
0-90°/0-360° |
| Main motor |
kw |
15 |
18.5 |
18.5 |
| Gross motor |
kw |
21 |
24 |
24 |
| Water consumption |
m³/h |
4 |
4 |
4 |
| Outline dimension |
mm |
6000*4800*2900 |
6000*4800*3100 |
6000*4800*3200 |
| Gross weight |
kg |
5250 |
5500 |
5750 |
Xianda Machinery
Fujian Jinjiang Xianda Machinery Co.Ltd was established in 1985 and has been dedicated to the development and production of a series of column making machines, wire saw stone cutting machines, block trimming machines, bridge saw cutting machines, and profiling stone cutting machines.
With the company's rapid development, we have passed ISO9001 verification, CE certification, and won many honorary titles including the International Gold Plant Quality Award. We maintain "Advanced Technology and High Quality" as our aim and have developed a range of 'Xianda' Brand special stone shape processing machines.
Exhibition
Our Service
- Training for machine installation and operation
- Engineers available for overseas machinery service
- 24-hour online after-sales service
For any inquiries or support, please contact our sales department or customer service department at any time.
